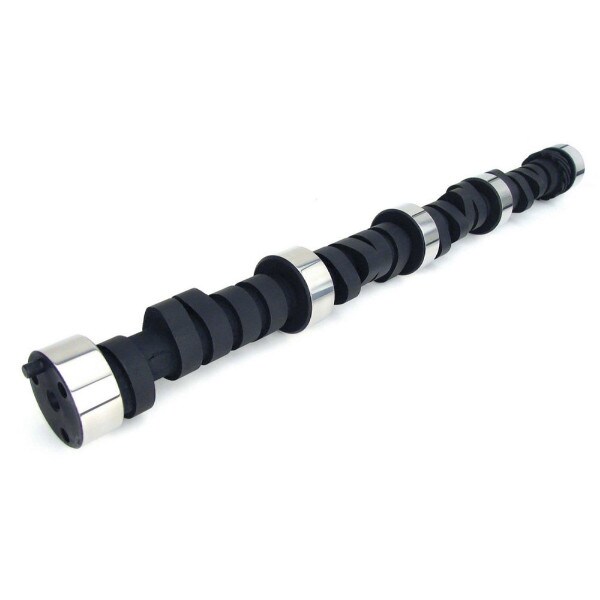

Comp Cams Camshaft, Hydraulic Flat Tappet, Lift 0.552" / 0.555", Duration 274 / 286, Big Block Chevy (Xtreme Energy)
SKU: CMP-11-246-3
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$245.95
Details
Details
Xtreme Energy™ 230/236 Hydraulic Flat Tappet Cam for Chevy Big Block 396-454. High performance street. Very strong mid-range with headers and a 2200+ stall.
- Engine Family : Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
- RPM Operating Range : 1,800-6,000
- Grind Number : XE274H
- Cam Type : Hydraulic Flat Tappet
- Lifter Style : Hydraulic Flat Tappet
- Camshaft Series : Xtreme Energy
- Usage : Street/Performance
- Advertised Intake Duration : 274
- Advertised Exhaust Duration : 286
- Intake Duration at .050 Inch Lift : 230
- Exhaust Duration at .050 Inch Lift : 236
- Intake Valve Lift : 0.552
- Exhaust Valve Lift : 0.555
- Lobe Lift Intake : 0.325
- Lobe Lift Exhaust : 0.327
- Lobe Separation : 110
- Intake Centerline : 106
- Exhaust Close ATDC : 29
- Intake Open BTDC : 31
- Exhaust Open BBDC : 77
- Intake Close ABDC : 63
- Camshaft Gear Attachment : 3-Bolt
