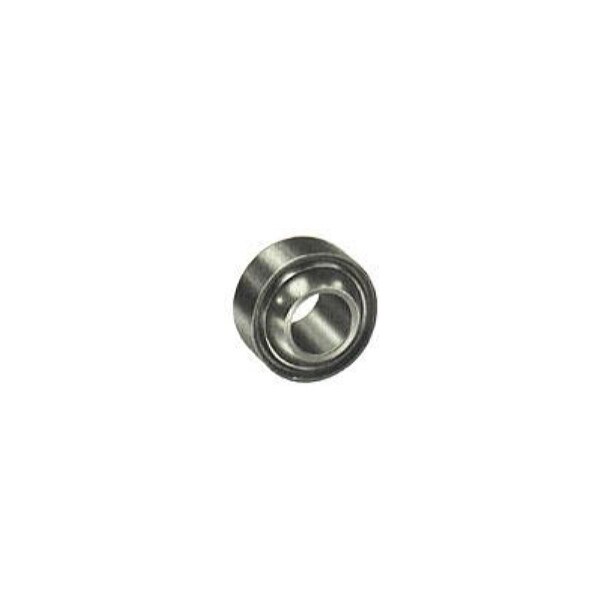

Aurora Monoball, ANC Series, Stainless Steel, 0.656" Outside Diameter, 0.250" Bore (PTFE Lined) (Grooved)
SKU: AUR-ANC-4TG
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$47.35
Details
Details
Part Number : ANC-4TG
Military Part No : MS14101-4Bearing Type : Grooved
B - Ball Bore : .2500 in
D - Outside Diameter : .6562 in
W - Ball Width : .343 in
H - Race Width : .250 in
O - Ball Shoulder Diameter : .364 in
P - Groove Depth : .025 in
G - Groove Pitch Diameter : .594 in
R - Grooved Radius : .010 in
Ball Diameter : .500 in
a - Misalignment Angle : 10 º
Radial Static Limit Load Capacity : 6,040 lbs
Axial Static Limit Load Capacity : 430 lb
Oscillating Load : 3,320 lb
Approximate Brg. Weight : .02 lb
Note : PTFE Teflon Lined
