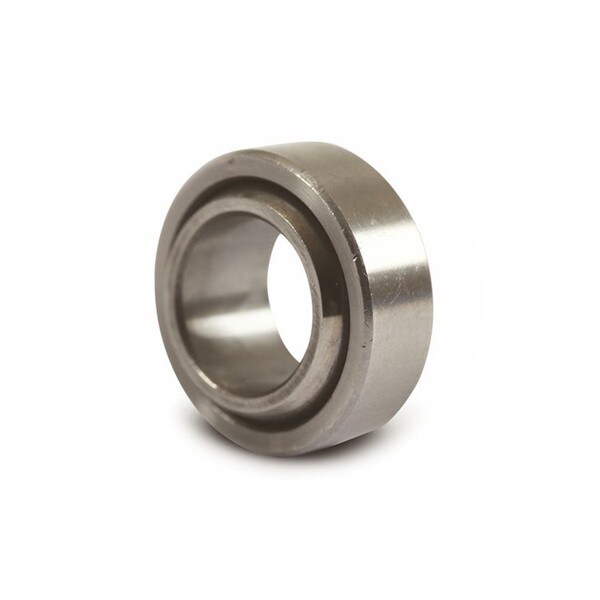

Aurora Monoball, COM Series, Steel, 0.750" Outside Diameter, 0.312" Bore (PTFE Lined)
SKU: AUR-COM-5T
In Stock
Approximate On-Hand Inventory: 4 $19.15
Details
Details
Part Number : COM-5T

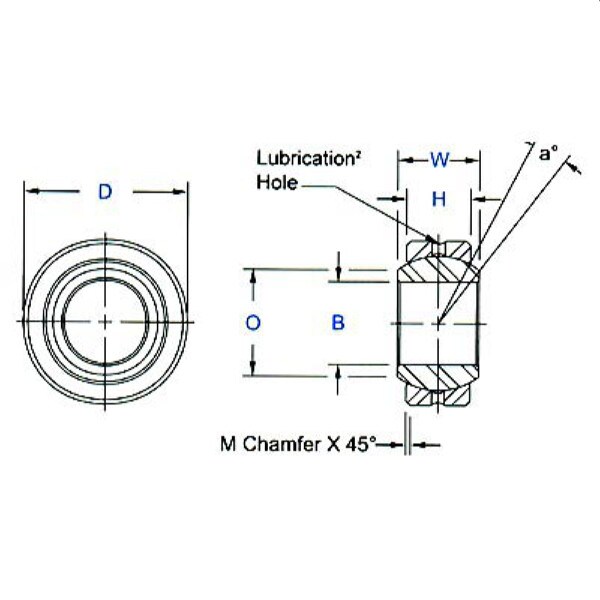

B - Ball Bore : .3125 in
D - Outside Diameter : .7500 in
H - Race Width : .281 in
W - Ball Width : .375 in
O - Ball Shoulder Diameter : .419 in
M - Chamfer : .032 in
Ball Diameter : .562 in
a - Misalignment Angle : 12 º
Radial Static Limit Load Capacity : 6,475 lb
Approximate Brg. Weight : .03 lb
Note : PTFE Teflon Lined
B - Ball Bore : .3125 in
D - Outside Diameter : .7500 in
H - Race Width : .281 in
W - Ball Width : .375 in
O - Ball Shoulder Diameter : .419 in
M - Chamfer : .032 in
Ball Diameter : .562 in
a - Misalignment Angle : 12 º
Radial Static Limit Load Capacity : 6,475 lb
Approximate Brg. Weight : .03 lb
Note : PTFE Teflon Lined
