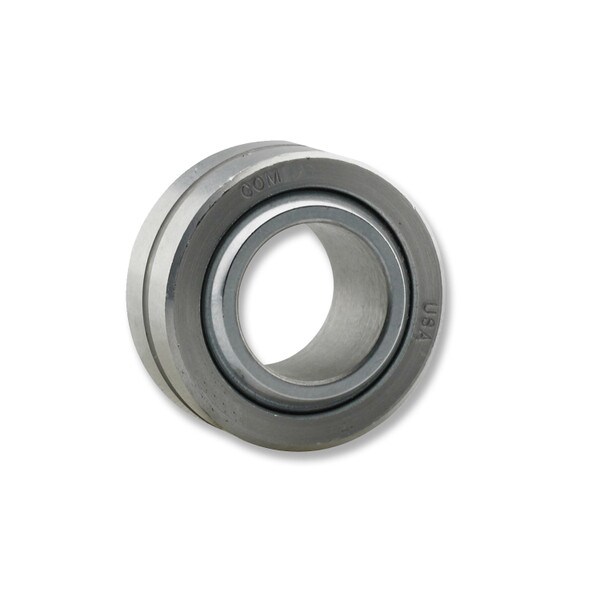

Aurora Monoball, COM Series, Steel, 0.812" Outside Diameter, 0.375" Bore
SKU: AUR-COM-6
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$13.85
Details
Details
Part Number : COM-6

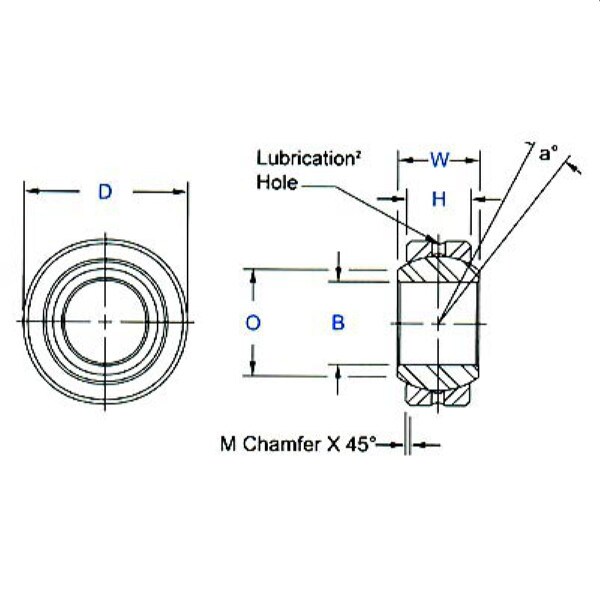

B - Ball Bore : .3750 in
D - Outside Diameter : .8125 in
H - Race Width : .312 in
W - Ball Width : .406 in
O - Ball Shoulder Diameter : .516 in
M - Chamfer : .032 in
Ball Diameter : .656 in
a - Misalignment Angle : 10 º
Radial Static Limit Load Capacity : 8,400 lb
Approximate Brg. Weight : .04 lb
Type of Lubrication : Groove and Oil Hole
B - Ball Bore : .3750 in
D - Outside Diameter : .8125 in
H - Race Width : .312 in
W - Ball Width : .406 in
O - Ball Shoulder Diameter : .516 in
M - Chamfer : .032 in
Ball Diameter : .656 in
a - Misalignment Angle : 10 º
Radial Static Limit Load Capacity : 8,400 lb
Approximate Brg. Weight : .04 lb
Type of Lubrication : Groove and Oil Hole
