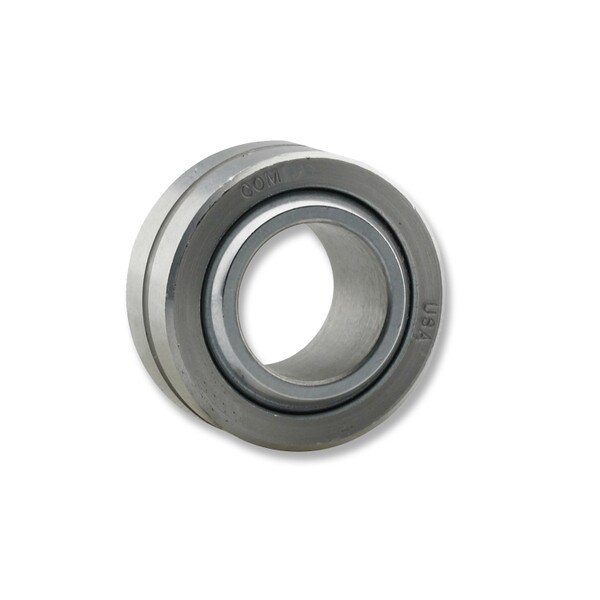

Aurora Monoball, COM Series, Steel, 1.000" Outside Diameter, 0.500" Bore
SKU: AUR-COM-8
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$14.25
Details
Details
Part Number : COM-8
B - Ball Bore : .5000 in
D - Outside Diameter : 1.0000 in
H - Race Width : .390 in
W - Ball Width : .500 in
O - Ball Shoulder Diameter : .640 in
M - Chamfer : .032 in
Ball Diameter : .813 in
a - Misalignment Angle : 9.5 º
Radial Static Limit Load Capacity : 13,250 lb
Approximate Brg. Weight : .07 lb
Type of Lubrication : Groove and Oil Hole
B - Ball Bore : .5000 in
D - Outside Diameter : 1.0000 in
H - Race Width : .390 in
W - Ball Width : .500 in
O - Ball Shoulder Diameter : .640 in
M - Chamfer : .032 in
Ball Diameter : .813 in
a - Misalignment Angle : 9.5 º
Radial Static Limit Load Capacity : 13,250 lb
Approximate Brg. Weight : .07 lb
Type of Lubrication : Groove and Oil Hole
