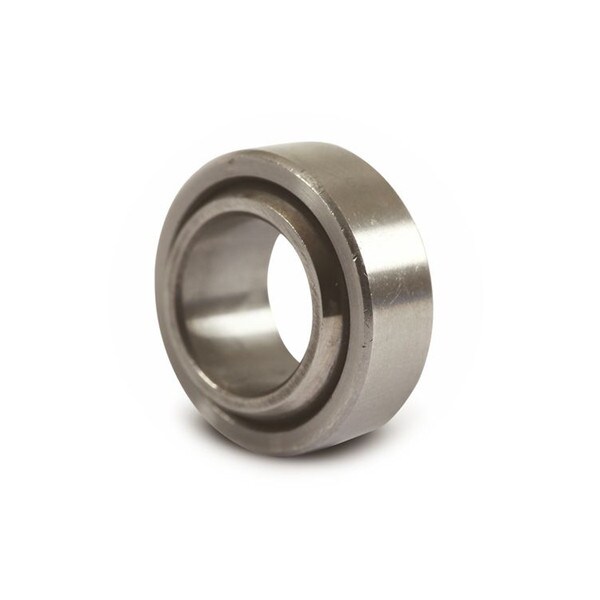

Aurora Monoball, COM Series, Steel, 1.750" Outside Diameter, 1.000" Bore (PTFE Lined)
SKU: AUR-COM-16T
In Stock
Approximate On-Hand Inventory: 9 $50.60
Details
Details
Part Number : COM-16T

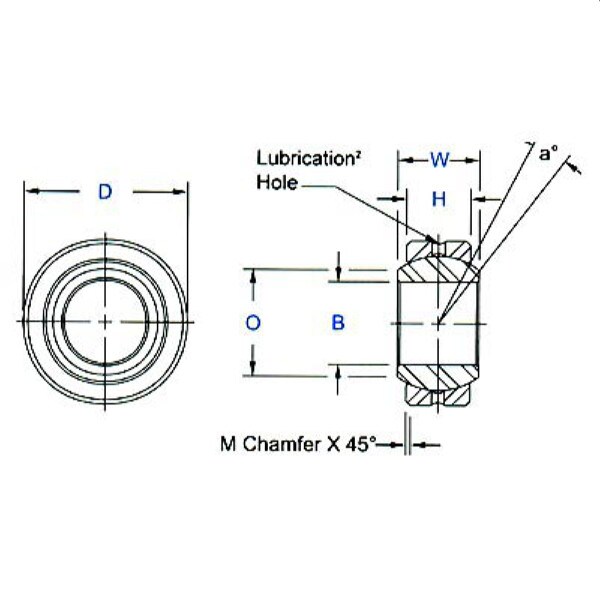

B - Ball Bore : 1.0000 in
D - Outside Diameter : 1.7500 in
H - Race Width : .797 in
W - Ball Width : 1.000 in
O - Ball Shoulder Diameter : 1.118 in
M - Chamfer : .044 in
Ball Diameter : 1.500 in
a - Misalignment Angle : 10 º
Radial Static Limit Load Capacity : 55,200 lb
Approximate Brg. Weight : .39 lb
Note : PTFE Teflon Lined
B - Ball Bore : 1.0000 in
D - Outside Diameter : 1.7500 in
H - Race Width : .797 in
W - Ball Width : 1.000 in
O - Ball Shoulder Diameter : 1.118 in
M - Chamfer : .044 in
Ball Diameter : 1.500 in
a - Misalignment Angle : 10 º
Radial Static Limit Load Capacity : 55,200 lb
Approximate Brg. Weight : .39 lb
Note : PTFE Teflon Lined
