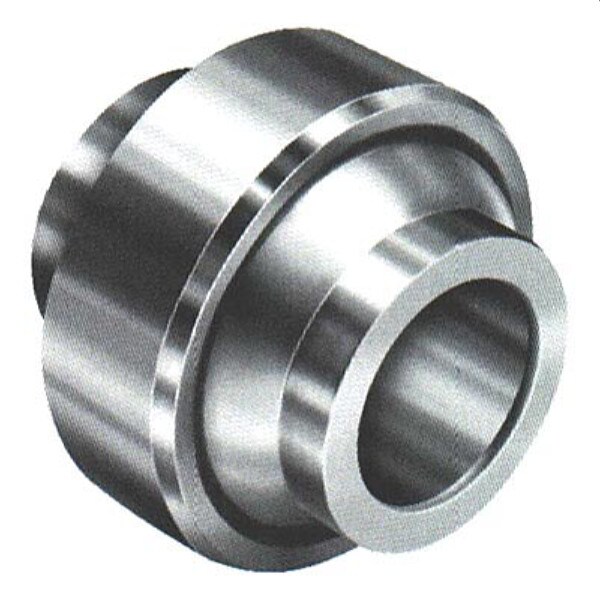

Aurora Monoball, High Misalignment, Steel, 0.250" ID (PTFE Lined)
SKU: AUR-HAB-4T
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$42.58
Details
Details
Part Number : HAB-4T

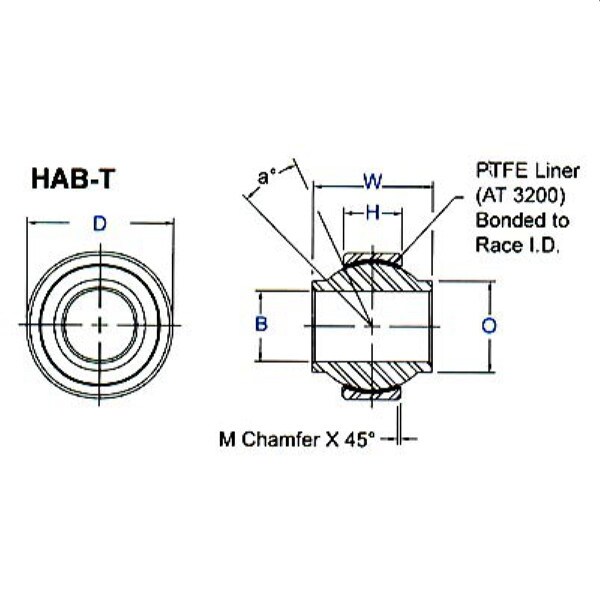

Bearing Type : Plain
B - Ball Bore : .2500 in
D - Outside Diameter : .7400 in
W - Ball Width : .593 in
H - Race Width : .255 in
M - Chamfer : .020 in
O - Ball Shoulder Diameter : .390 in
Ball Diameter : .593 in
a - Misalignment Angle : 24 º
Radial Static Limit Load Capacity : 7,560 lbs
Approximate Brg. Weight : .04 lb
Note : PTFE Teflon Lined
Bearing Type : Plain
B - Ball Bore : .2500 in
D - Outside Diameter : .7400 in
W - Ball Width : .593 in
H - Race Width : .255 in
M - Chamfer : .020 in
O - Ball Shoulder Diameter : .390 in
Ball Diameter : .593 in
a - Misalignment Angle : 24 º
Radial Static Limit Load Capacity : 7,560 lbs
Approximate Brg. Weight : .04 lb
Note : PTFE Teflon Lined
