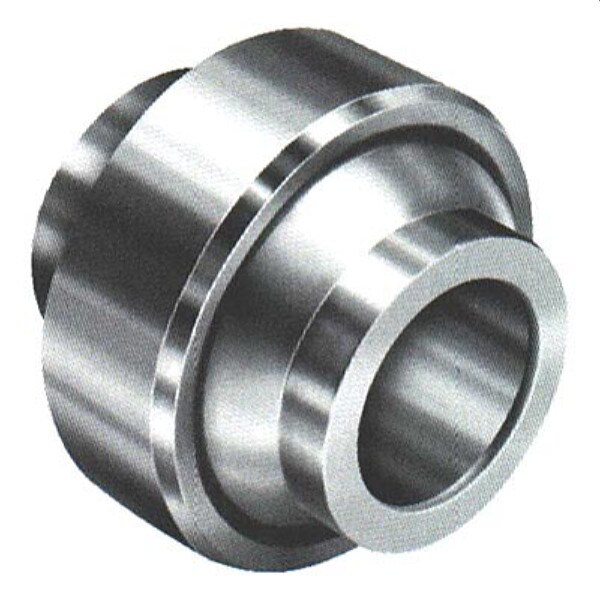

Aurora Monoball, High Misalignment, Steel, 0.375" ID (PTFE Lined)
SKU: AUR-HAB-6T
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$37.60
Details
Details
Part Number : HAB-6T

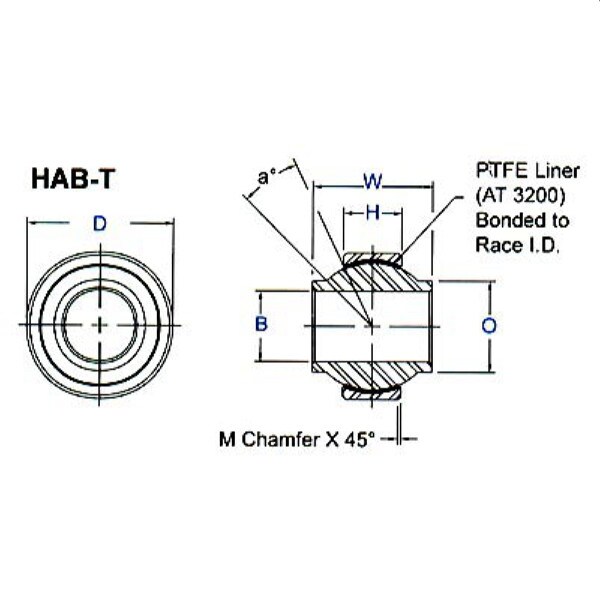

Bearing Type : Plain
B - Ball Bore : .3750 in
D - Outside Diameter : .9060 in
W - Ball Width : .813 in
H - Race Width : .345 in
M - Chamfer : .030 in
O - Ball Shoulder Diameter : .512 in
Ball Diameter : .781 in
a - Misalignment Angle : 23 º
Radial Static Limit Load Capacity : 16,975 lbs
Approximate Brg. Weight : .07 lb
Note : PTFE Teflon Lined
Bearing Type : Plain
B - Ball Bore : .3750 in
D - Outside Diameter : .9060 in
W - Ball Width : .813 in
H - Race Width : .345 in
M - Chamfer : .030 in
O - Ball Shoulder Diameter : .512 in
Ball Diameter : .781 in
a - Misalignment Angle : 23 º
Radial Static Limit Load Capacity : 16,975 lbs
Approximate Brg. Weight : .07 lb
Note : PTFE Teflon Lined
