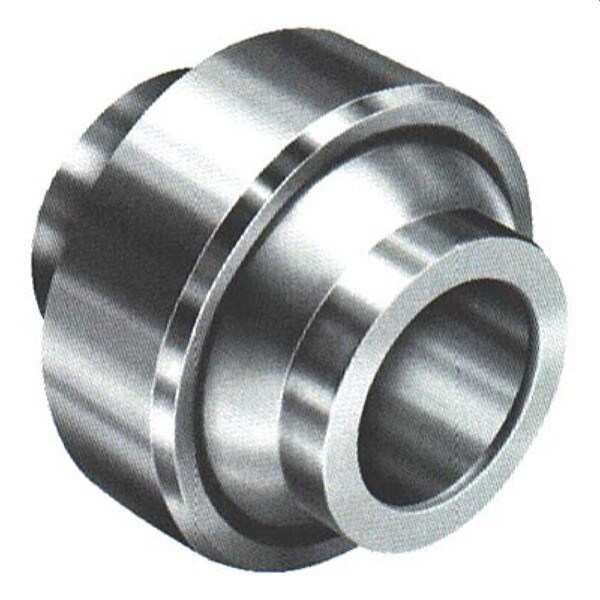

Aurora Monoball, High Misalignment, Steel, 0.437" ID (PTFE Lined)
SKU: AUR-HAB-7T
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$43.57
Details
Details
Part Number : HAB-7T
Bearing Type : Plain

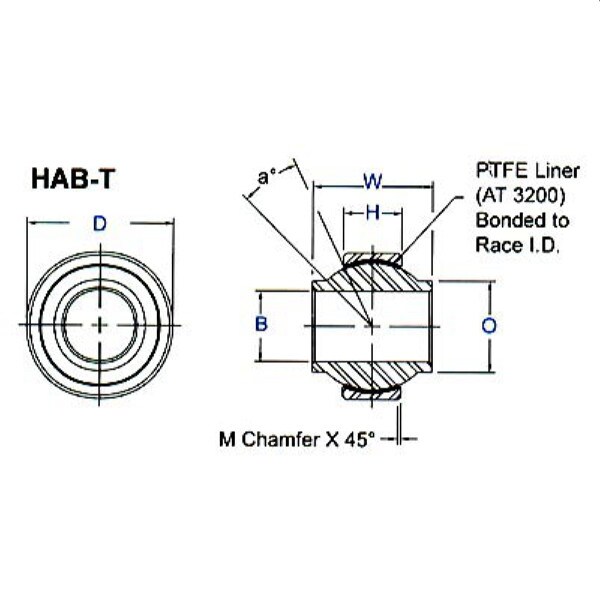

B - Ball Bore : .4375 in
D - Outside Diameter : 1.0000 in
W - Ball Width : .875 in
H - Race Width : .345 in
M - Chamfer : .030 in
O - Ball Shoulder Diameter : .618 in
Ball Diameter : .875 in
a - Misalignment Angle : 22 º
Radial Static Limit Load Capacity : 19,018 lbs
Approximate Brg. Weight : .09 lb
Note : PTFE Teflon Lined
Bearing Type : Plain
B - Ball Bore : .4375 in
D - Outside Diameter : 1.0000 in
W - Ball Width : .875 in
H - Race Width : .345 in
M - Chamfer : .030 in
O - Ball Shoulder Diameter : .618 in
Ball Diameter : .875 in
a - Misalignment Angle : 22 º
Radial Static Limit Load Capacity : 19,018 lbs
Approximate Brg. Weight : .09 lb
Note : PTFE Teflon Lined
