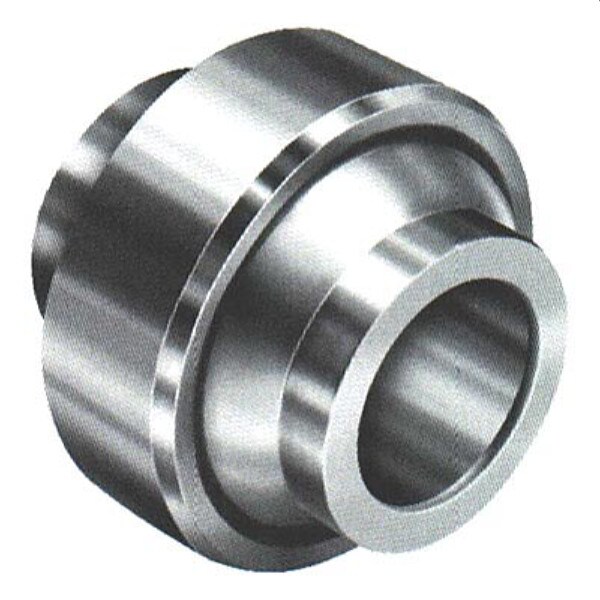

Aurora Monoball, High Misalignment, Steel, 0.500" ID (PTFE Lined)
SKU: AUR-HAB-8T
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$46.55
Details
Details
Part Number : HAB-8T
Bearing Type : Plain
B - Ball Bore : .5000 in
D - Outside Diameter : 1.1250 in
W - Ball Width : .937 in
H - Race Width : .401 in
M - Chamfer : .030 in
O - Ball Shoulder Diameter : .730 in
Ball Diameter : 1.000 in
a - Misalignment Angle : 20 º
Radial Static Limit Load Capacity : 25,263 lbs
Approximate Brg. Weight : .13 lb
Note : PTFE Teflon Lined
Bearing Type : Plain
B - Ball Bore : .5000 in
D - Outside Diameter : 1.1250 in
W - Ball Width : .937 in
H - Race Width : .401 in
M - Chamfer : .030 in
O - Ball Shoulder Diameter : .730 in
Ball Diameter : 1.000 in
a - Misalignment Angle : 20 º
Radial Static Limit Load Capacity : 25,263 lbs
Approximate Brg. Weight : .13 lb
Note : PTFE Teflon Lined
