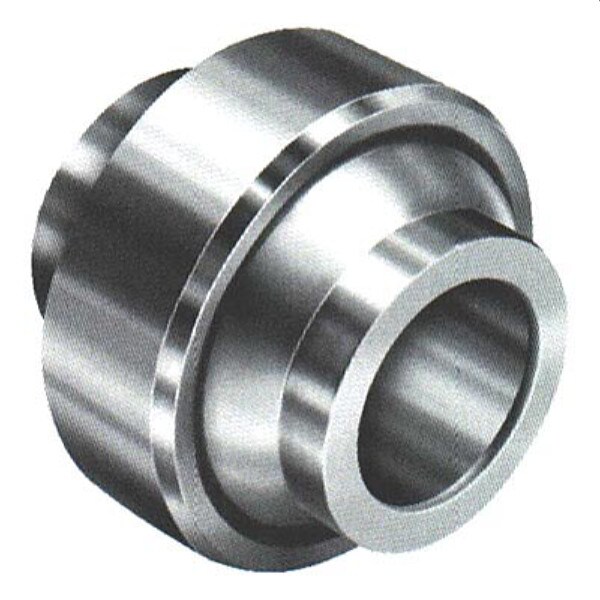

Aurora Monoball, High Misalignment, Steel, 0.750" ID (PTFE Lined) (Grooved)
SKU: AUR-HAB-12TG
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$78.17
Details
Details

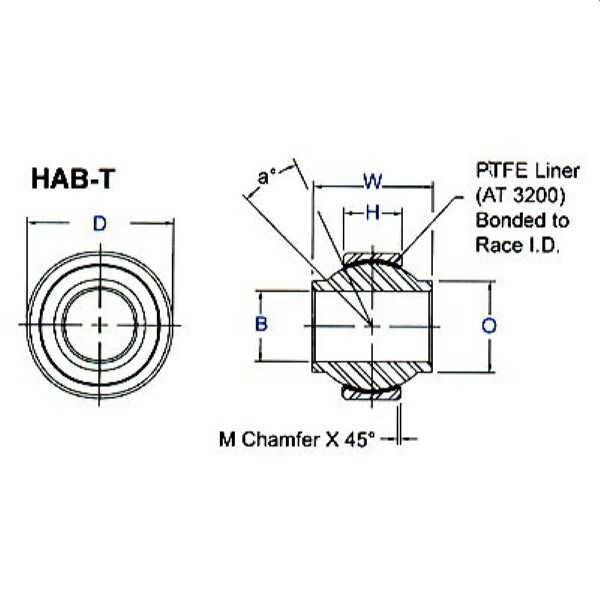

Part Number : HAB-12TG
Bearing Type : Grooved
B - Ball Bore : .7500 in
D - Outside Diameter : 1.5625 in
W - Ball Width : 1.280 in
H - Race Width : .620 in
M - Chamfer : .035 in
O - Ball Shoulder Diameter : .970 in
P - Groove Depth : .035 in
G - Groove Pitch Diameter : 1.467 in
R - Grooved Radius : .015 in
Ball Diameter : 1.375 in
a - Misalignment Angle : 18 º
Radial Static Limit Load Capacity : 53,707 lbs
Approximate Brg. Weight : .33 lb
Note : PTFE Teflon Lined
Bearing Type : Grooved
B - Ball Bore : .7500 in
D - Outside Diameter : 1.5625 in
W - Ball Width : 1.280 in
H - Race Width : .620 in
M - Chamfer : .035 in
O - Ball Shoulder Diameter : .970 in
P - Groove Depth : .035 in
G - Groove Pitch Diameter : 1.467 in
R - Grooved Radius : .015 in
Ball Diameter : 1.375 in
a - Misalignment Angle : 18 º
Radial Static Limit Load Capacity : 53,707 lbs
Approximate Brg. Weight : .33 lb
Note : PTFE Teflon Lined
