Aurora Monoball, Stainless Steel, 0.190" ID (PTFE Lined) (Grooved)
SKU: AUR-AWC-3TG
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$32.20
Details
Details
Part Number : AWC-3TG
Military Part No. : MS14103-3

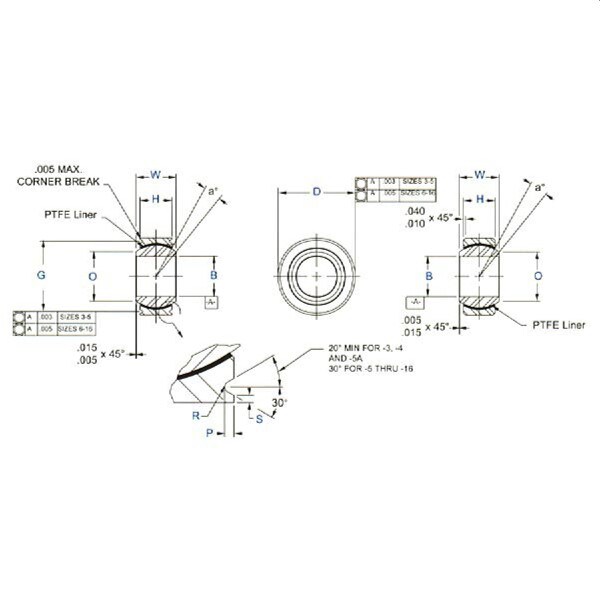

Bearing Type : Grooved
B - Ball Bore : .1900 in
D - Outside Diameter : .6250 in
W - Ball Width : .437 in
H - Race Width : .327 in
O - Ball Shoulder Diameter : .30 in
P - Groove Depth : .025 in
G - Groove Pitch Diameter : .563 in
R - Grooved Radius : .010 in
Ball Diameter : .531 in
a - Misalignment Angle : 15 º
Radial Static Limit Load Capacity : 2,500 lbs
Axial Static Limit Load Capacity : 1,770 lb
Oscillating Load : 4,900 lb
Standard Fit, No Load Rotational Breakaway Torque : .25 to 5.0 in·lb
Approximate Brg. Weight : .031 lb
Note : PTFE Teflon Lined
