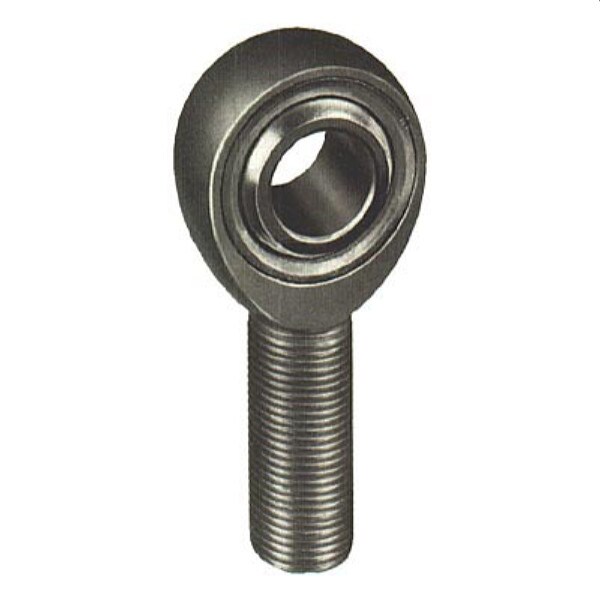

Aurora Rod End, AB Series, Steel, M5 x 0.80 LH Thread, Male, 5mm Bore

Part Number : AB-M5

Thread Type : Left Hand
Thread Configuration : Male

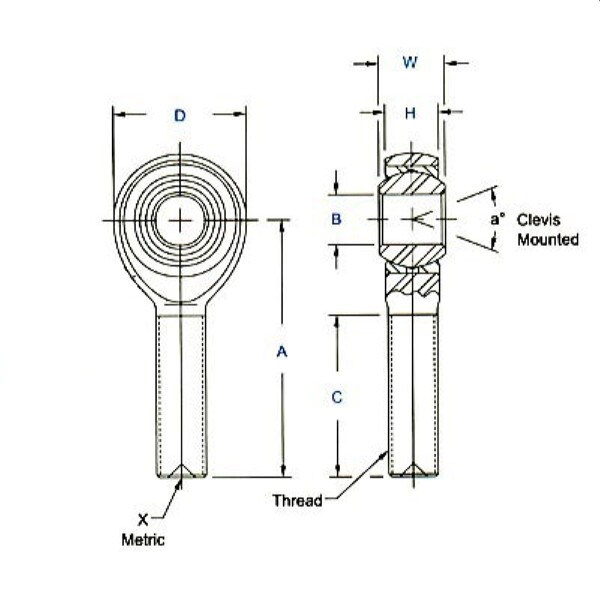

B - Ball Bore : 5.000 mm
W - Ball Width : 8.00 mm
H - Head Width : 6.25 mm
A - Base to Center : 33.00 mm
D - Head Diameter : 16.00 mm
Ball Diameter : 11.10 mm
C - Thread Length : 20.00 mm
Thread Size : M5 x 0.8
Thread Class : -6g-LH
a1 - Misalignment Angle Clevis Mounted : 14 º
a3 - Misalignment Angle - Shoulder Bolt Mounted : 24 º
a4 - Misalignment Angle - Pin Mounted : 58 º
Ultimate Radial Static Load Capacity : 12,611 N
Approximate Brg. Weight : 13 g
Type of Lubrication : None
