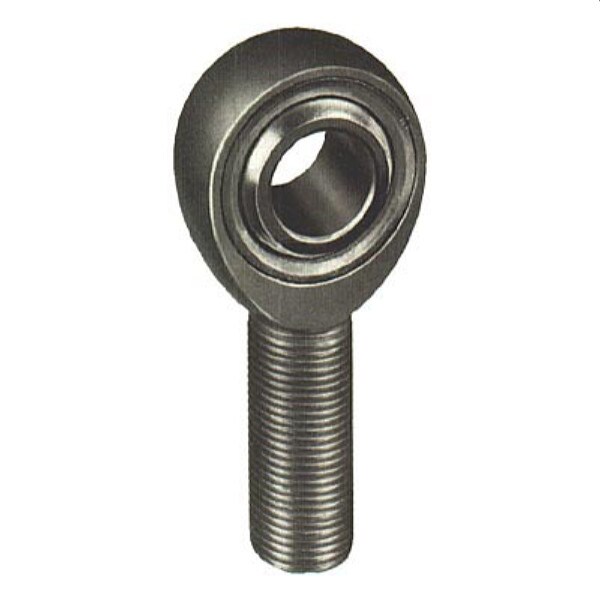

Aurora Rod End, AB Series, Steel, M6 x 1.00 LH Thread, Male, 6mm Bore (Teflon Lined)
SKU: AUR-AB-M6T
In Stock
Approximate On-Hand Inventory: 2 $31.25
Details
Details
Part Number : AB-M6T
Thread Type : Left Hand
Thread Configuration : Male
B - Ball Bore : 6.000 mm
W - Ball Width : 9.00 mm
H - Head Width : 7.00 mm
A - Base to Center : 36.00 mm
D - Head Diameter : 19.00 mm
Ball Diameter : 12.70 mm
C - Thread Length : 22.00 mm
Thread Size : M6 x 1.0
Thread Class : -6g-LH
a1 - Misalignment Angle Clevis Mounted : 13 º
a3 - Misalignment Angle - Shoulder Bolt Mounted : 23 º
a4 - Misalignment Angle - Pin Mounted : 57 º
Ultimate Radial Static Load Capacity : 17,720 N
Approximate Brg. Weight : 18 g
Note : PTFE Teflon Lined
