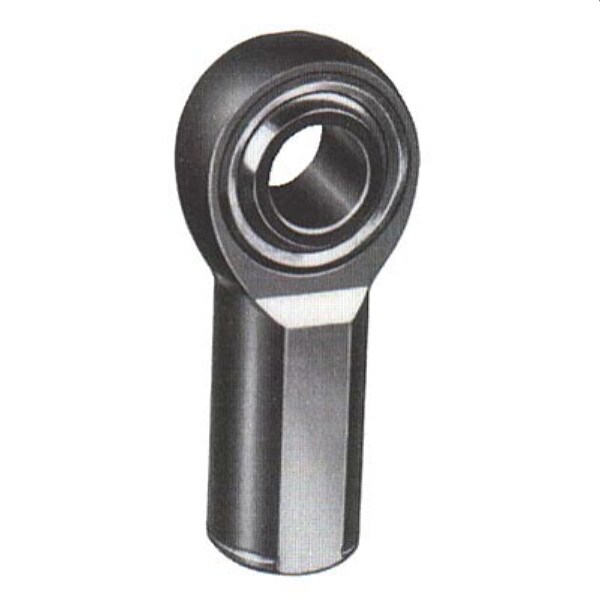

Aurora Rod End, AG Series, Steel, 1/4"-28 LH Thread, Female, 0.250" Bore (Teflon Lined)

Part Number : AG-4T

Thread Type : Left Hand
Thread Configuration : Female

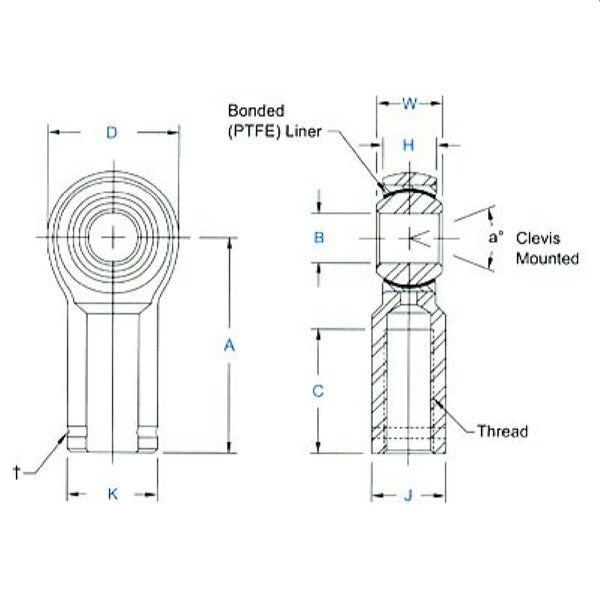

B - Ball Bore : .2500 in
W - Ball Width : .375 in
H - Head Width : .281 in
A - Base to Center : 1.312 in
D - Head Diameter : .750 in
K - Shank Diameter : .469 in
J - Wrench Flat Width : .375 in
Ball Diameter : .500 in
C - Thread Depth [inch] : .750 in
Thread Size : 1/4-28
Thread Class : UNF-3B-LH
a - Misalignment Angle Clevis Mounted : 16 º
Ultimate Radial Static Load Capacity : 6,190 lbs
Approximate Brg. Weight : .06 lb
Note : PTFE Teflon Lined
