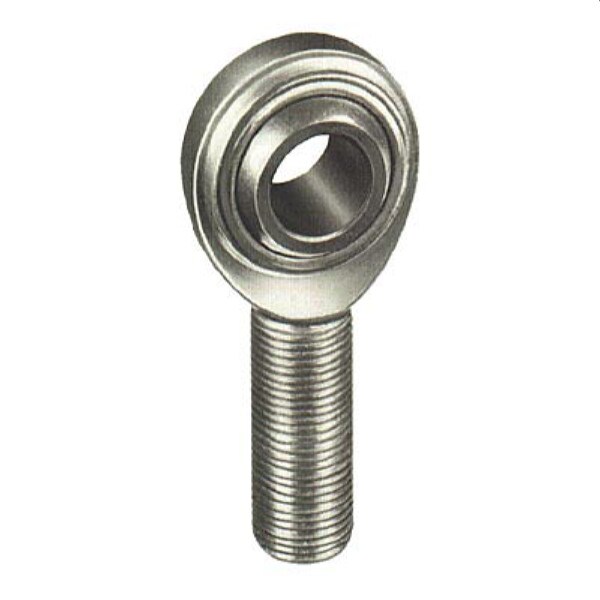

Aurora Rod End, CB Series, Steel, 3/8"-24 LH Thread, Male, 0.375" Bore
SKU: AUR-CB-6
In Stock
Approximate On-Hand Inventory: 1 $8.85
Details
Details
Part Number : CB-6
Thread Type : Left Hand
Thread Configuration : Male

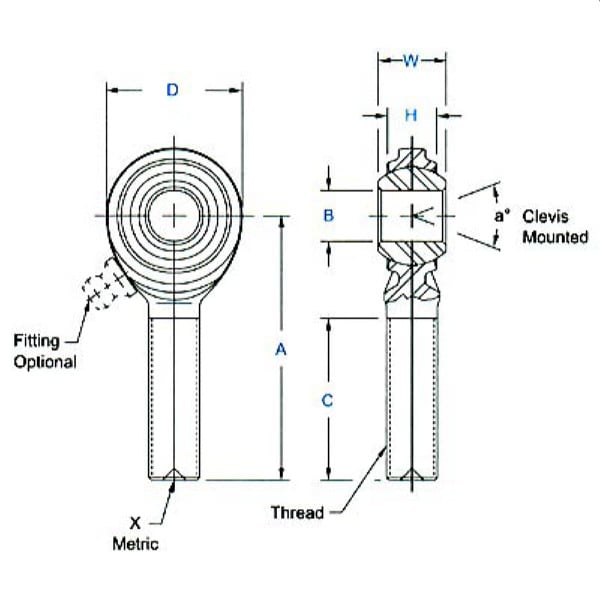

B - Ball Bore : .3750 in
W - Ball Width : .500 in
H - Head Width : .359 in
A - Base to Center : 1.938 in
D - Head Diameter : 1.000 in
Ball Diameter : .719 in
C - Thread Length : 1.250 in
Thread Size : 3/8-24
Thread Class : UNF-3A-LH
a - Misalignment Angle Clevis Mounted : 22 º
Ultimate Radial Static Load Capacity : 5,068 lbs
Approximate Brg. Weight : .11 lb
Type of Lubrication : None
Thread Type : Left Hand
Thread Configuration : Male
B - Ball Bore : .3750 in
W - Ball Width : .500 in
H - Head Width : .359 in
A - Base to Center : 1.938 in
D - Head Diameter : 1.000 in
Ball Diameter : .719 in
C - Thread Length : 1.250 in
Thread Size : 3/8-24
Thread Class : UNF-3A-LH
a - Misalignment Angle Clevis Mounted : 22 º
Ultimate Radial Static Load Capacity : 5,068 lbs
Approximate Brg. Weight : .11 lb
Type of Lubrication : None
