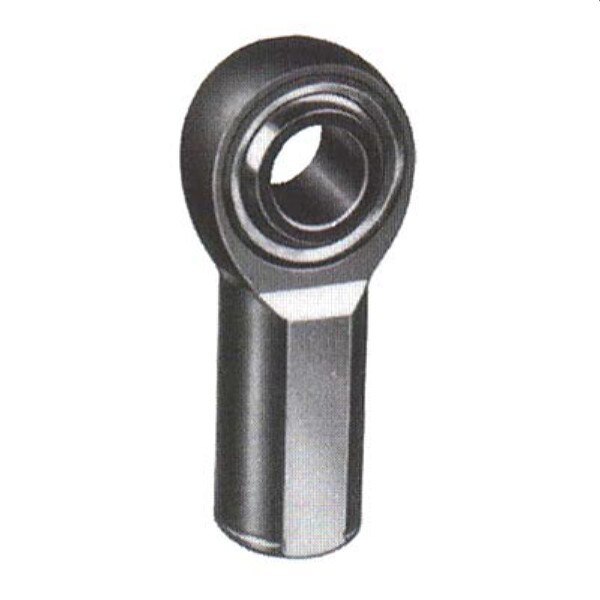

Aurora Rod End, MW Series, Steel, 10-32 RH Thread, Female, 0.187" Bore
SKU: AUR-MW-3
In Stock
Approximate On-Hand Inventory: 19 $9.60
Details
Details
Part Number : MW-3
Thread Type : Right Hand
Thread Configuration : Female

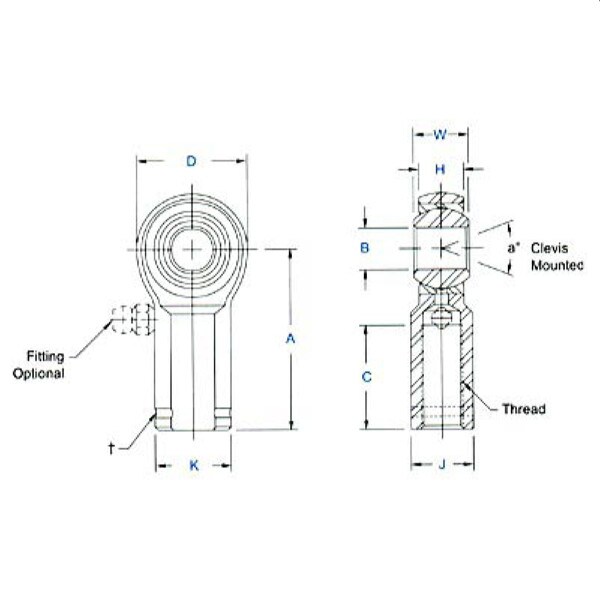

B - Ball Bore : .1900 in
W - Ball Width : .312 in
H - Head Width : .250 in
A - Base to Center : 1.062 in
D - Head Diameter : .625 in
K - Shank Diameter : .406 in
J - Wrench Flat Width : .312 in
Ball Diameter : .437 in
C - Thread Depth [inch] : .562 in
Thread Size : 10-32
Thread Class : UNF-2B
a - Misalignment Angle Clevis Mounted : 13 º
Ultimate Radial Static Load Capacity : 1,531 lbs
Approximate Brg. Weight : .04 lb
Type of Lubrication : None
