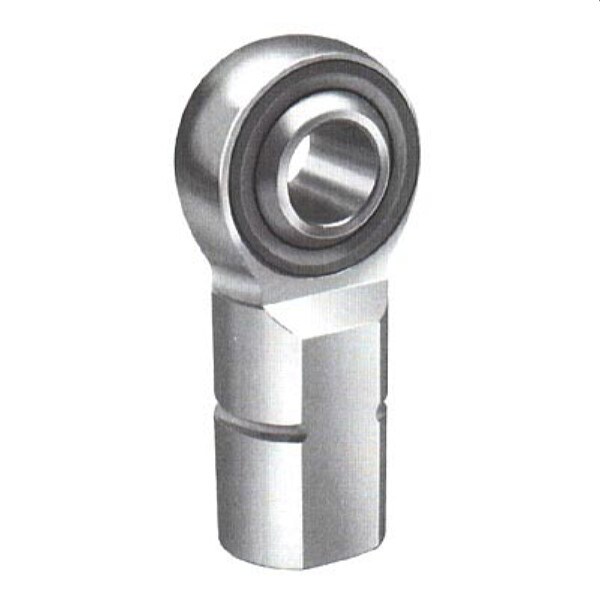

Aurora Rod End, MW Series, Steel, M8 x 1.25 RH Thread, Female, 8mm Bore
SKU: AUR-MW-M8
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$11.60
Details
Details
Part Number : MW-M8
Thread Type : Right Hand
Thread Configuration : Female

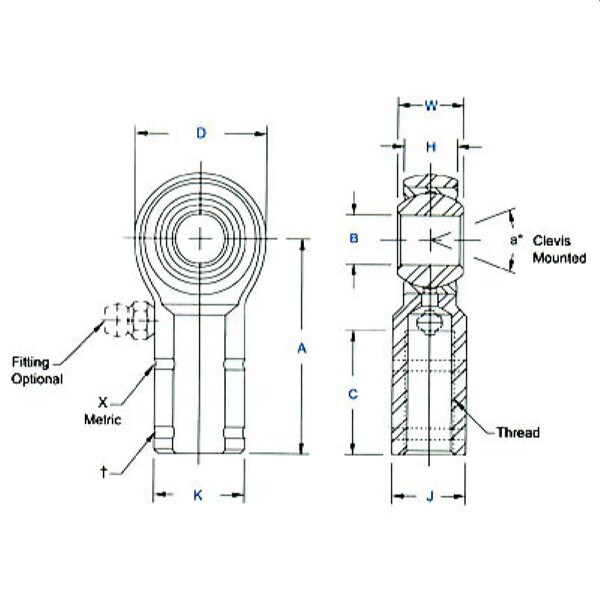

B - Ball Bore : 8.000 mm
W - Ball Width : 12.00 mm
H - Head Width : 8.75 mm
A - Base to Center : 36.00 mm
D - Head Diameter : 22.25 mm
K - Shank Diameter : 16.00 mm
J - Wrench Flat Width : 14.00 mm
Ball Diameter : 15.88 mm
C - Thread Depth [mm] : 17.00 mm
Thread Size : M8 x 1.25
Thread Class : -6H
a1 - Misalignment Angle Clevis Mounted : 18 º
a3 - Misalignment Angle - Shoulder Bolt Mounted : 31 º
a4 - Misalignment Angle - Pin Mounted : 53 º
Ultimate Radial Static Load Capacity : 14,072 N
Approximate Brg. Weight : 40 g
Type of Lubrication : None
