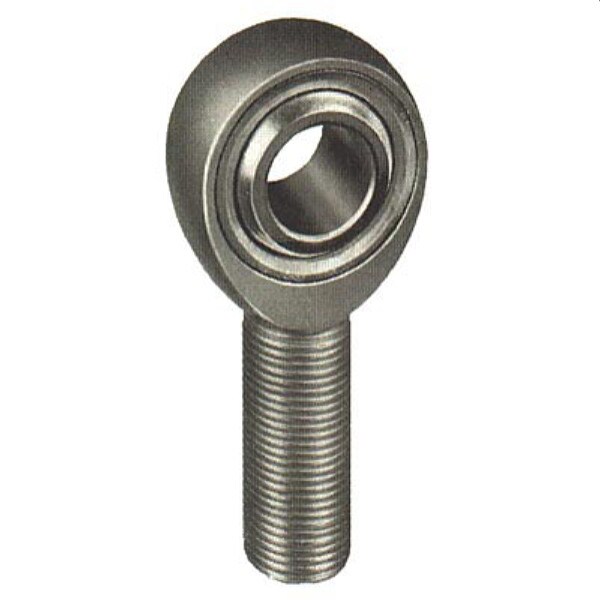

Aurora Rod End, RAM Series, Steel, 7/16"-20 RH Thread, Male, 0.437" Bore (Teflon Lined)
SKU: AUR-RAM-7T
In Stock
Approximate On-Hand Inventory: 2 $61.85
Details
Details
Part Number : RAM-7T
Thread Type : Right Hand
Thread Configuration : Male

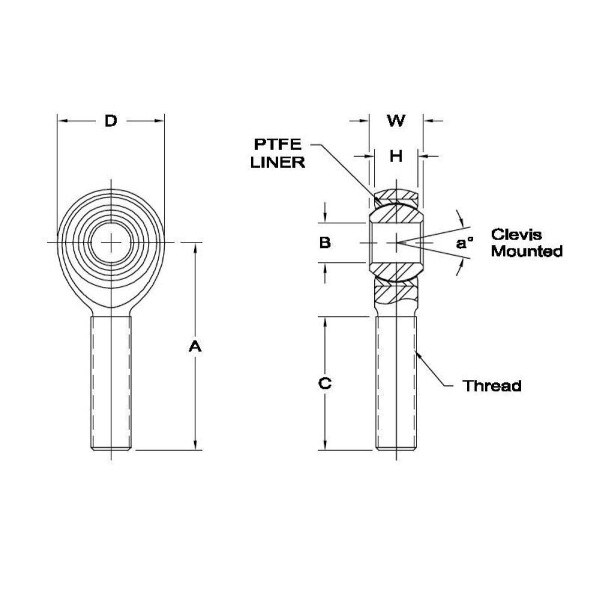

B - Ball Bore : .4375 in
W - Ball Width : .562 in
H - Head Width : .437 in
A - Base to Center : 2.125 in
D - Head Diameter : 1.125 in
Ball Diameter : .812 in
C - Thread Length : 1.312 in
Thread Size : 7/16-20
Thread Class : UNJF-3A
a - Misalignment Angle Clevis Mounted : 14 º
Ultimate Radial Static Load Capacity : 9,653 lbs
Approximate Brg. Weight : .16 lb
Note : PTFE Teflon Lined
