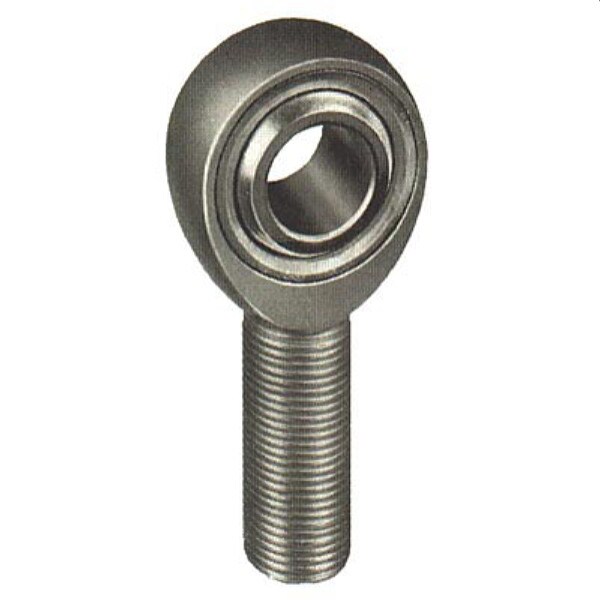

Aurora Bearings Rod End, RXAM Series, Steel, 5/8"-18 RH Thread, Male, 0.500" Bore (Teflon Lined)
Details
Part Number : RXAM-8T
Thread Type : Right Hand
Thread Configuration : Male

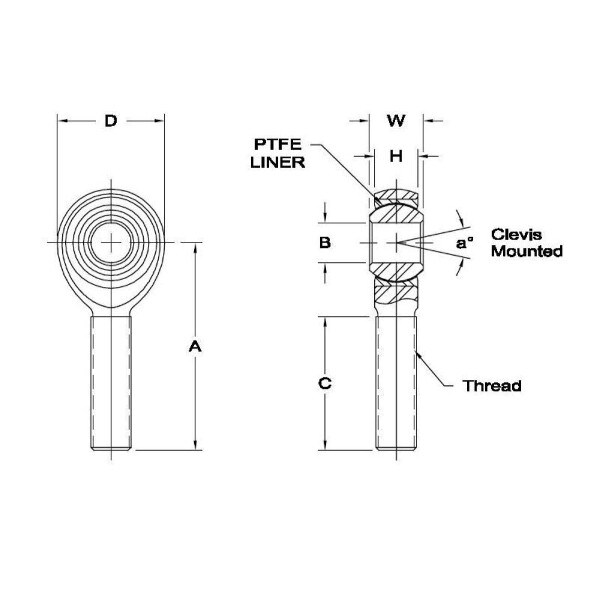

B - Ball Bore : .5000 in
W - Ball Width : .625 in
H - Head Width : .500 in
A - Base to Center : 2.625 in
D - Head Diameter : 1.500 in
Ball Diameter : .937 in
C - Thread Length : 1.562 in
Thread Size : 5/8-18
Thread Class : UNJF-3A
a - Misalignment Angle Clevis Mounted : 10 º
Ultimate Radial Static Load Capacity : 30,579 lbs
Approximate Brg. Weight : .38 lb
Note : PTFE Teflon Lined
Thread Type : Right Hand
Thread Configuration : Male
B - Ball Bore : .5000 in
W - Ball Width : .625 in
H - Head Width : .500 in
A - Base to Center : 2.625 in
D - Head Diameter : 1.500 in
Ball Diameter : .937 in
C - Thread Length : 1.562 in
Thread Size : 5/8-18
Thread Class : UNJF-3A
a - Misalignment Angle Clevis Mounted : 10 º
Ultimate Radial Static Load Capacity : 30,579 lbs
Approximate Brg. Weight : .38 lb
Note : PTFE Teflon Lined
