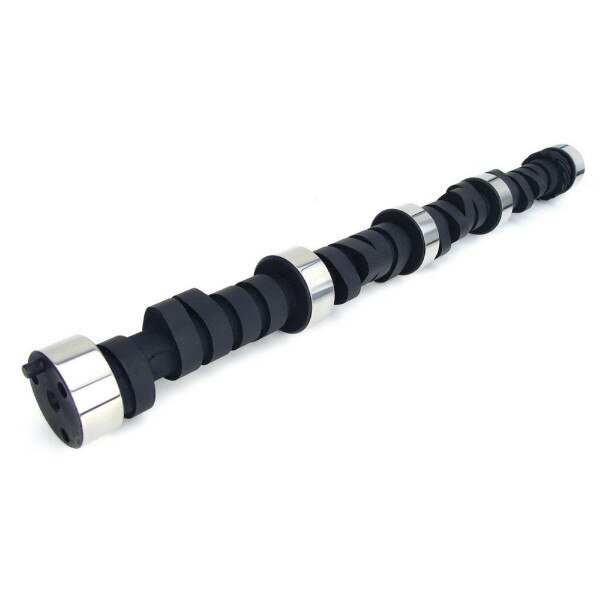

Comp Cams Camshaft, Hydraulic Flat Tappet, Lift 0.470" / 0.475", Duration 250 / 260, Big Block Chevy (Xtreme Energy)
SKU: CMP-11-230-3
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$239.95
Details
Details
Xtreme Energy™ 206/212470/475 V Lift Hydraulic Flat Tappet Cam for Chevy Big Block 396-454 Xtreme Energy™™ 206/212 Hydraulic Flat Tappet. Very strong torque with excellent mileage and a smooth idle.
- Engine Family : Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
- RPM Operating Range : 600-4,800
- Grind Number : XE250H
- Cam Type : Hydraulic Flat Tappet
- Lifter Style : Hydraulic Flat Tappet
- Camshaft Series : Xtreme Energy
- Usage : Street/Performance
- Advertised Intake Duration : 250
- Advertised Exhaust Duration : 260
- Intake Duration at .050 Inch Lift : 206
- Exhaust Duration at .050 Inch Lift : 212
- Intake Valve Lift : 0.47
- Exhaust Valve Lift : 0.475
- Lobe Lift Intake : 0.277
- Lobe Lift Exhaust : 0.28
- Lobe Separation : 110
- Intake Centerline : 106
- Exhaust Close ATDC : 16
- Intake Open BTDC : 19
- Exhaust Open BBDC : 64
- Intake Close ABDC : 51
- Camshaft Gear Attachment : 3-Bolt
