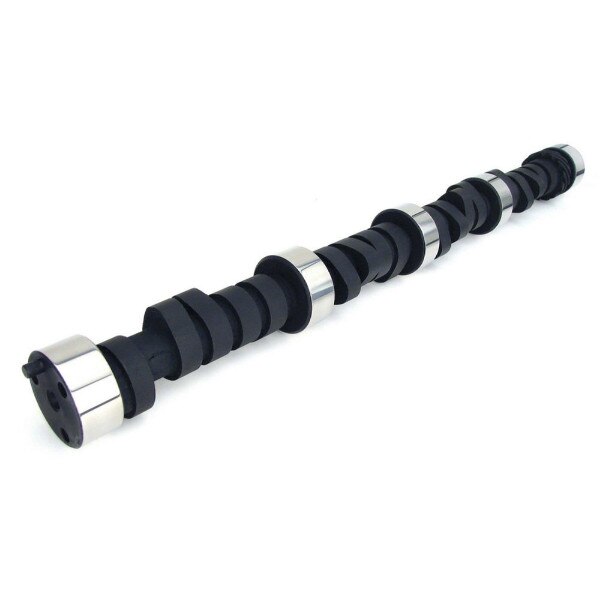

Comp Cams Camshaft, Hydraulic Flat Tappet, Lift 0.505" / 0.515", Duration 262 / 270, Big Block Chevy (Xtreme Energy 4x4)
SKU: CMP-11-235-3
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$244.95
Details
Details
Xtreme 4x4™ 218/226 Hydraulic Flat Tappet Cam for Chevy Big Block 396-454. Great mid-range power. Good for heavy towing with a 4.10 gear. Largest cam for stock converter.
- Engine Family : Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
- RPM Operating Range : 1,400-5,400
- Grind Number : X4 262H
- Cam Type : Hydraulic Flat Tappet
- Lifter Style : Hydraulic Flat Tappet
- Camshaft Series : Xtreme 4x4
- Usage : Street/Performance
- Advertised Intake Duration : 262
- Advertised Exhaust Duration : 270
- Intake Duration at .050 Inch Lift : 218
- Exhaust Duration at .050 Inch Lift : 226
- Intake Valve Lift : 0.505
- Exhaust Valve Lift : 0.515
- Lobe Lift Intake : 0.297
- Lobe Lift Exhaust : 0.303
- Lobe Separation : 111
- Intake Centerline : 107
- Exhaust Close ATDC : 20
- Intake Open BTDC : 24
- Exhaust Open BBDC : 70
- Intake Close ABDC : 58
- Camshaft Gear Attachment : 3-Bolt
