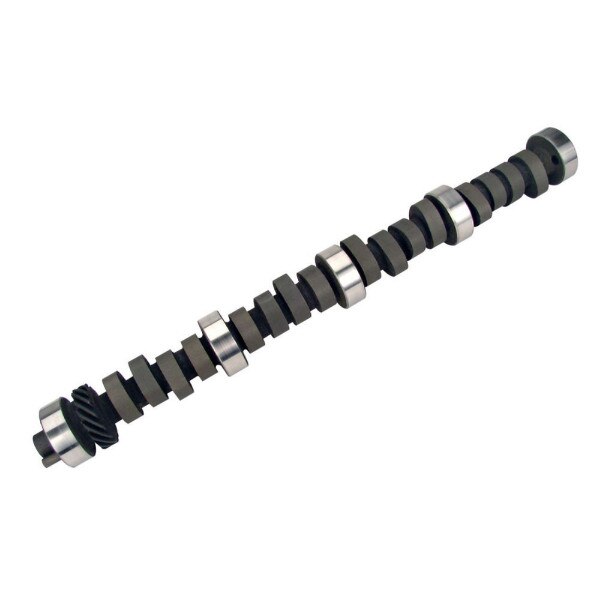

Comp Cams Camshaft, Hydraulic Flat Tappet, Lift 0.560" / 0.560", Duration 292 / 292, 110 LSA, 2500 / 6500 RPM, Ford Cleveland / Modified (Magnum)
SKU: CMP-32-234-4
Ships directly from the manufacturer; please allow an additional 2-5 days for delivery
$243.95
Details
Details
HYDRAULIC: Street/strip use with 3000+ stall, 10:1 compression, low gears, racey idle.
- Engine Family : Ford 351C, 351M-400M 8 Cylinder (1970-1983)
- RPM Operating Range : 2,500-6,500
- Grind Number : 292H
- Cam Type : Hydraulic Flat Tappet
- Lifter Style : Hydraulic Flat Tappet
- Camshaft Series : Magnum
- Usage : Street/Strip
- Advertised Intake Duration : 292
- Advertised Exhaust Duration : 292
- Intake Duration at .050 Inch Lift : 244
- Exhaust Duration at .050 Inch Lift : 244
- Intake Valve Lift : 0.56
- Exhaust Valve Lift : 0.56
- Lobe Lift Intake : 0.323
- Lobe Lift Exhaust : 0.323
- Lobe Separation : 110
- Intake Centerline : 106
- Exhaust Close ATDC : 32
- Intake Open BTDC : 40
- Exhaust Open BBDC : 80
- Intake Close ABDC : 72
- Camshaft Gear Attachment : 1-Bolt
