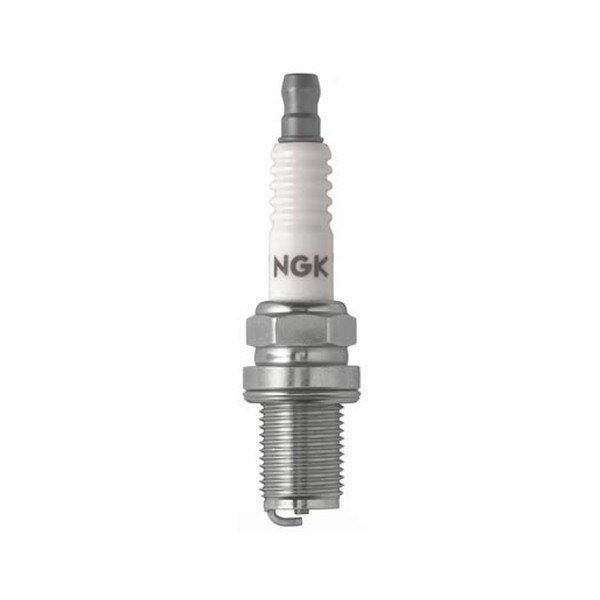

NGK Spark Plug, Racing, 14mm Thread, 0.750" Reach, Flat Seat, Each (5820) (Manufacturer Heat Range : 10)
SKU: NGK-R5671A-10
UPC Code: 87295058206
MPN: R5671A-10
In Stock
Approximate On-Hand Inventory: 101 $7.35
Guide to shipping notes:
- No Free Shipping: No free shipping options available if an order contains this item
- No Expedited Shipping: No expedited shipping options available if an order contains this item
- No Free/Expedited Shipping: No free or expedited shipping options available if an order contains this item
- Hazard Fee: Hazardous material shipping fee is applied to the shipping rate if an order contains this item; no free or expedited shipping options available
- Pickup Only: No shipping options available if an order contains this item; pickup only
- Pickup/Local/LTL Only: Pickup only if an order contains this item, or reach out to us for local delivery or LTL options
Details
Details
NGK Racing Series plugs are engineered to withstand the harshest engine conditions. Special insulator nose configurations improve throttle response. Corrugated ribs prevent flashover. Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer. Copper core aids in heat removal. Triple seals prevent leakage.
Product Specifications :
Shell
Center Electrode
Ground Electrode
Specifications
Product Specifications :
Shell
- Thread Diameter : 14mm
- Thread Pitch : 1.25mm
- Seat Type : Gasket
- Reach : 19mm (3/4")
- Hex Size : 5/8" (16mm)
- Terminal Type : Solid
- Overall Height : ISO
- Gap : .020" (0.5mm)
Center Electrode
- Material : Nickel
- Type : V-Cut
- Size : 2.5mm
- Projection : Non-Projected
Ground Electrode
- Material : Nickel
- Type : Standard
- Quantity : 1
Specifications
- Resistor : No
- Resistor Value : 1K Ohm
- Heat Range : 10
- Features : Copper gasket
- Torque Specs : Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
