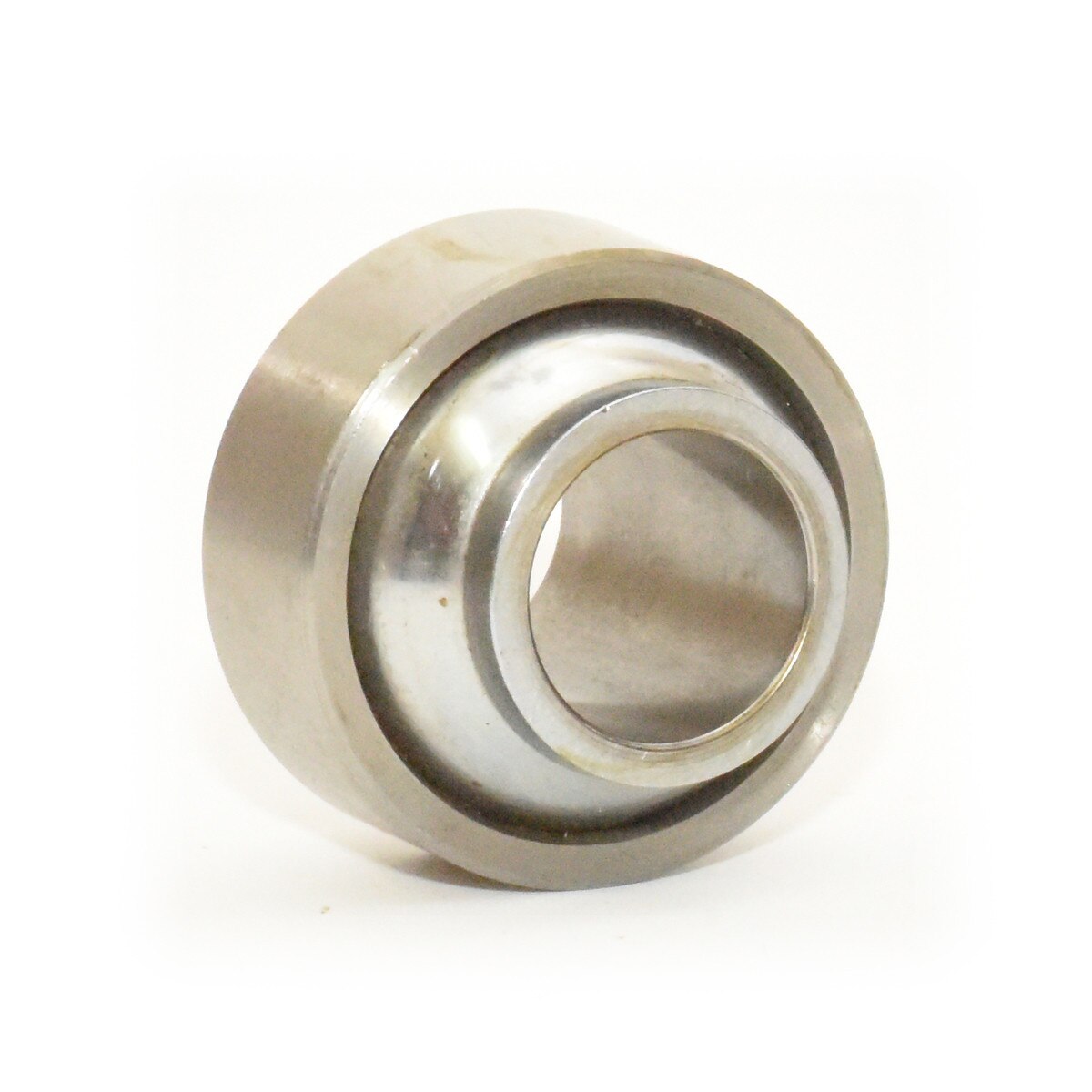

Rod End Supply Monoball, HIN Series, Steel, 0.750" Bore (Teflon Lined)
SKU: ROD-HIN-12T
In Stock
Approximate On-Hand Inventory: 3 $35.65
Guide to shipping notes:
- No Free Shipping: No free shipping options available if an order contains this item
- No Expedited Shipping: No expedited shipping options available if an order contains this item
- No Free/Expedited Shipping: No free or expedited shipping options available if an order contains this item
- Hazard Fee: Hazardous material shipping fee is applied to the shipping rate if an order contains this item; no free or expedited shipping options available
- Pickup Only: No shipping options available if an order contains this item; pickup only
- Pickup/Local/LTL Only: Pickup only if an order contains this item, or reach out to us for local delivery or LTL options
Details
Details

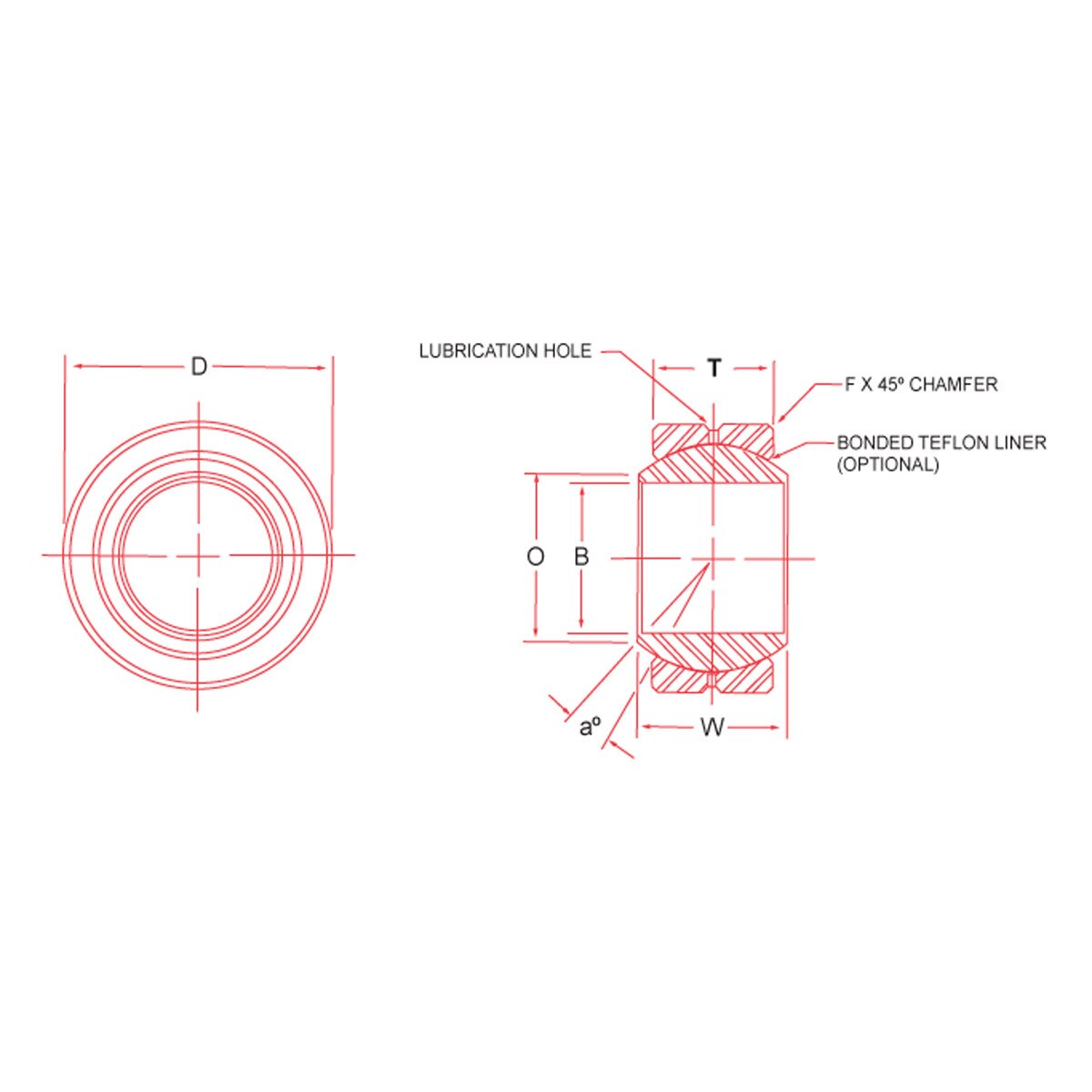

Measurements
- B Diameter : 0.7500"
- D Diameter : 1.5625"
- W Width : 1.280"
- T Width : 0.620"
- Ball Diameter : 1.375"
- O Diameter : 0.970"
- F Chamfer : 0.035"
- A Mis. Angle : 18°
- Ult. Static Radial Load : 53,716 lbs
- Approx. Weight : 0.315 lbs
Special Notes
DO NOT LUBRICATE: The rod ends listed below are self-lubricating. Additional lubricants may attract dirt and/or interfere with the self-lubricating properties of the component and may cause accelerated wear. DO NOT OPERATE VEHICLE WITH WORN OR CONTAMINATED ROD ENDS.
